Good waterproof performance and Damproof (can achieve IP65)
Anti-high temperature and exposure
High Transparency
Easy Maintenance

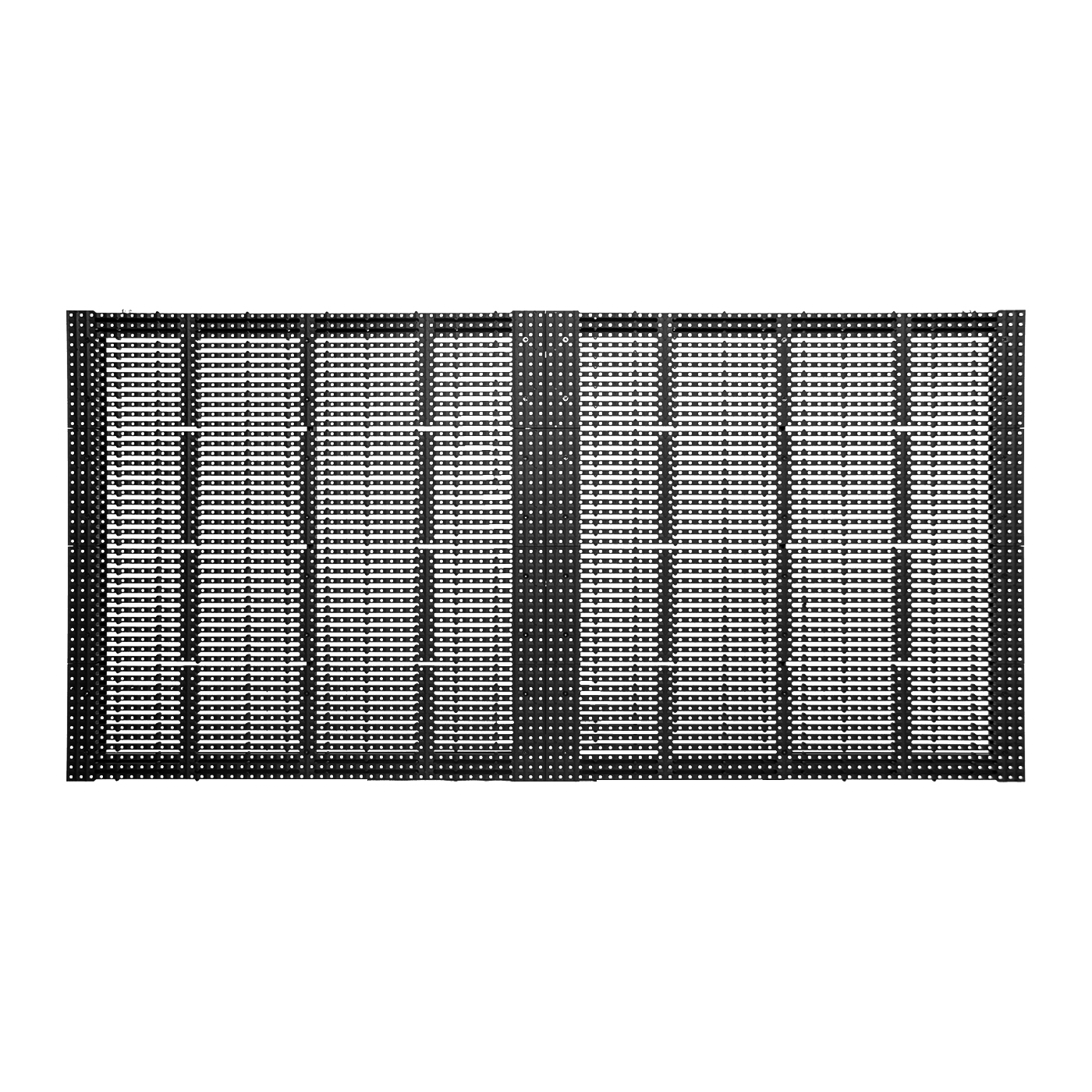

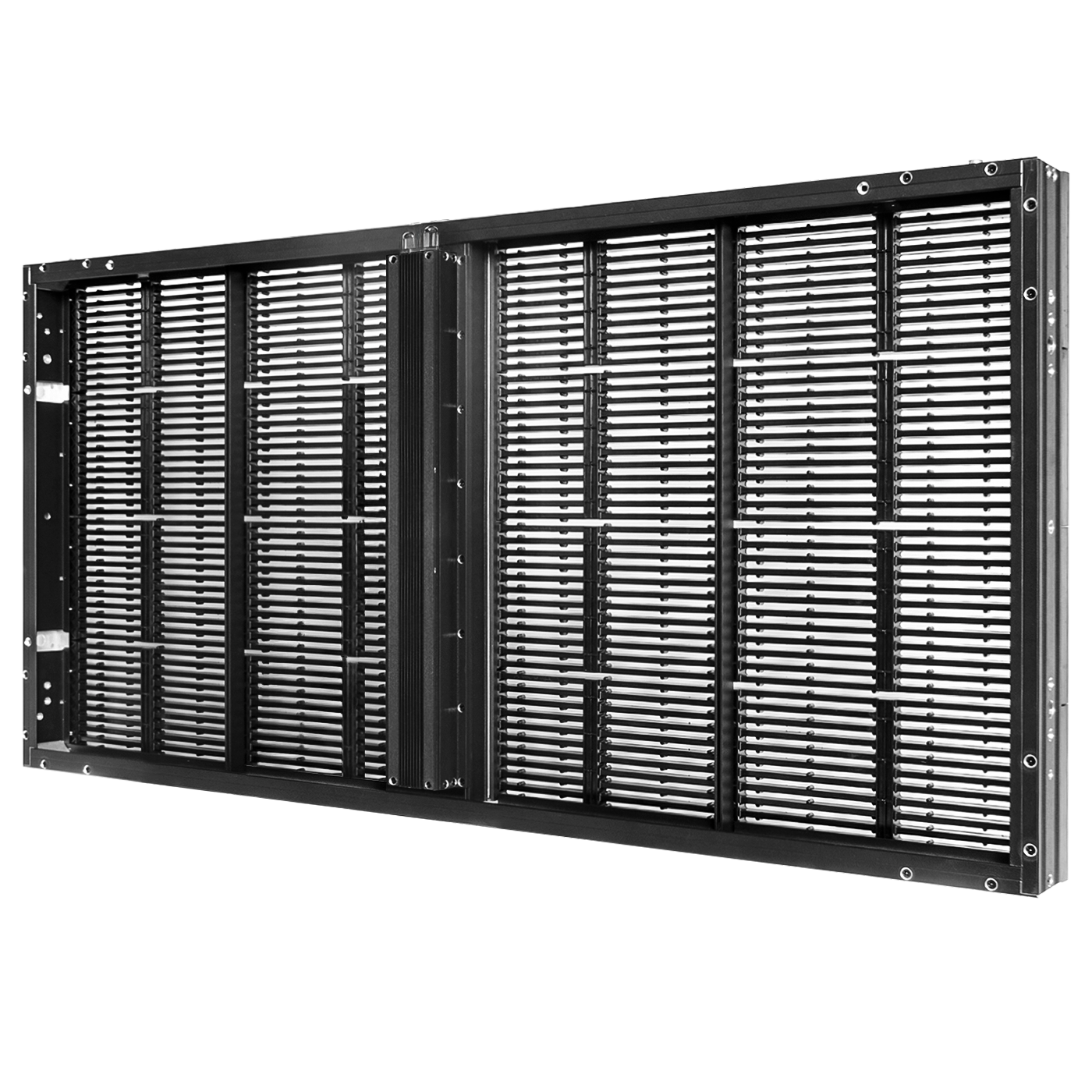

Profile LED Cabinet
| Outdoor Waterproof Series | ||||
| Product type | P3.91-7.81 | P7.81-15.625 | P10.4-10.4 | P15.625-15.625 |
| LED lamp | 1R1G1B （SMT 3in1） | 1R1G1B（SMT 3in1） | 1R1G1B（SMT 3in1） | 1R1G2B（SMT 3in1） |
| Pixel pitch | 3.91-7.81mm | 7.81-15.625mm | 10.42-10.42mm | 15.625-15.625mm |
| Cabinet size | 1000×500x85mm | 1000×500x85mm | 1000×500x85mm | 1000×500x86mm |
| Cabinet resolution | 256*128dots | 128*64dots | 96*96dots | 64*64dots |
| Repetition frequency | 60fps | 60fps | 60fps | 61fps |
| Refresh rate | ＞1920HZ | ＞1920HZ | ＞1920HZ | ＞1920HZ |
| Density | 32768 dots/㎡ | 8192 dots/㎡ | 9216 dots/㎡ | 4096 dots/㎡ |
| Gray Scale | 16bit | 16bit | 16bit | 17bit |
| Transparency | 45% | 45% | 45% | 30% |
| Lightness | ≥5000nit | ≥5000nit | ≥5000nit | ≥5000nit |
| Screen weight | 10kg/㎡ | 15kg/㎡ | 15kg/㎡ | 15kg/㎡ |
| Consumption(max/ave) | 800/260W/㎡ | 800/260W/㎡ | 800/260W/㎡ | 800/261W/㎡ |
| Input vot | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/60Hz | AC 86-264V/61Hz |
| View angle | Level160°，Vertical160° | Level160°，Vertical 160° | Level160°，Vertical160° | Level160°，Vertical161° |
| Level of protection | IP65 | IP65 | IP65 | IP66 |
| Min view distance | ≥4m | ≥8m | ≥10m | ≥15m |
| Fireproof performance | All VO grade flame retardant | All VO grade flame retardant | All VO grade flame retardant | All VO grade flame retardant |
